H2S analyzer

Features/Specification
Eliminate the need to replace paper tape reels

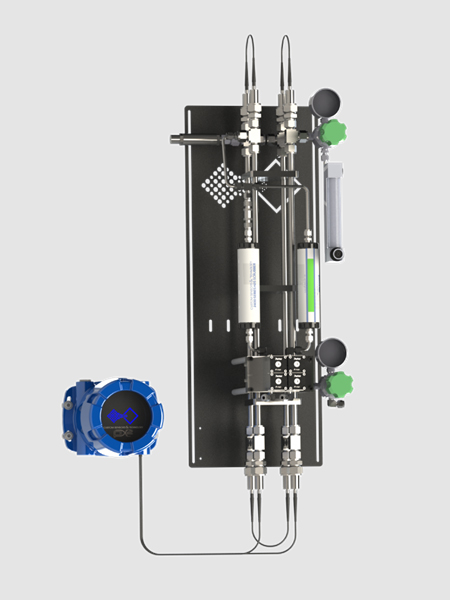

Consists of Flow Cell and PX2 Photometer
Special designed that sample never comes into contact with electronics
Fiber optic cables connection
AutoTune
Inlet Pressure : 3000 psi
Outlet Pressure : Atmospheric
Path length : 0.1cm to 3m
Pressure/Temperature
Measurement Principle : UV Absorbance
Precision : 1% of full scale or better
Range : 0~10ppm, 0~100%
Output : Modbus, 4-20mA ,USB-B
Power Consumption : 8.5watts(max.)
Power Requirement : 24VDC nominal(12-48VDC)
Temperature : 5~50C
